Geislinger Coupling
Test

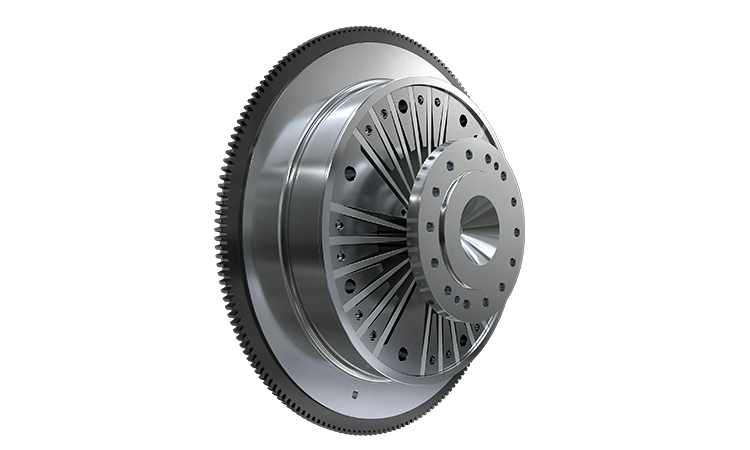

The Geislinger Coupling is a torsional elastic high-damping steel spring coupling with hydrodynamic damping properties. High reliability, long intervals between overhauls, and low operating costs are the main features of this ATEX certified coupling. The Geislinger Coupling is perfectly suited for all types of drivetrains where outstanding reliability is essential.

The Geislinger Coupling is a torsional elastic, high damping steel spring coupling. For more than 60 years, it has proven its efficiency and extraordinary long service life. Resistant to heat and oil and equipped with high-grade steel springs, this advanced coupling design provides constant product performance during its entire lifetime. Highly integrated designs provide outstanding power and torque density.

Advantages

  • Increase of driveline lifetime
  • Constant performance, no aging
  • Low total cost of ownership (TCO)
  • Tailor-made coupling
  • High-damping
  • Maintenance-free
  • Oil- and heat-resistant
  • Damping and stiffness can be optimized individually
  • Low axial reaction forces
  • The most compact design
  • Integration in flywheel and gear possible

Technical data

  • Torque range: virtually unlimited torque
  • Twist at nominal torque: 50 - 300 mrad
  • Dimensionless damping factor: 0.2 – 0.5
  • Ambient temperature: -10°C to 120°C
  • ATEX certification

Customized solution

Customized solution
Customized solution

Geislinger offers tailor-made solutions for your torsional vibration challenge along with torsional vibration calculation, manufacturing, commissioning, and measurement analysis. Using state-of-the-art manufacturing facilities, we tailor each product precisely to any individual system, providing the perfect solution for your application.

Lowest cost of ownership
Lowest cost of ownership

The Geislinger Coupling protects your system reliably by reducing engine excited torsional vibrations. The fatigue-resistant steel springs of the Geislinger Coupling optimize the natural frequency of the system to eliminate most of the critical resonance. Additionally, the Geislinger Coupling enables a more compact design of the whole propulsion system. This reduction in total weight leads to a better efficiency along with less loaded components and consequently longer operating times between service intervals. Supporting state-of-the-art engines, the Geislinger Coupling helps to reduce energy costs significantly.

Geislinger Marine Applications yacht
01/02

Rigidly mounted 4-stroke engine with mechanical and composite shaftline.

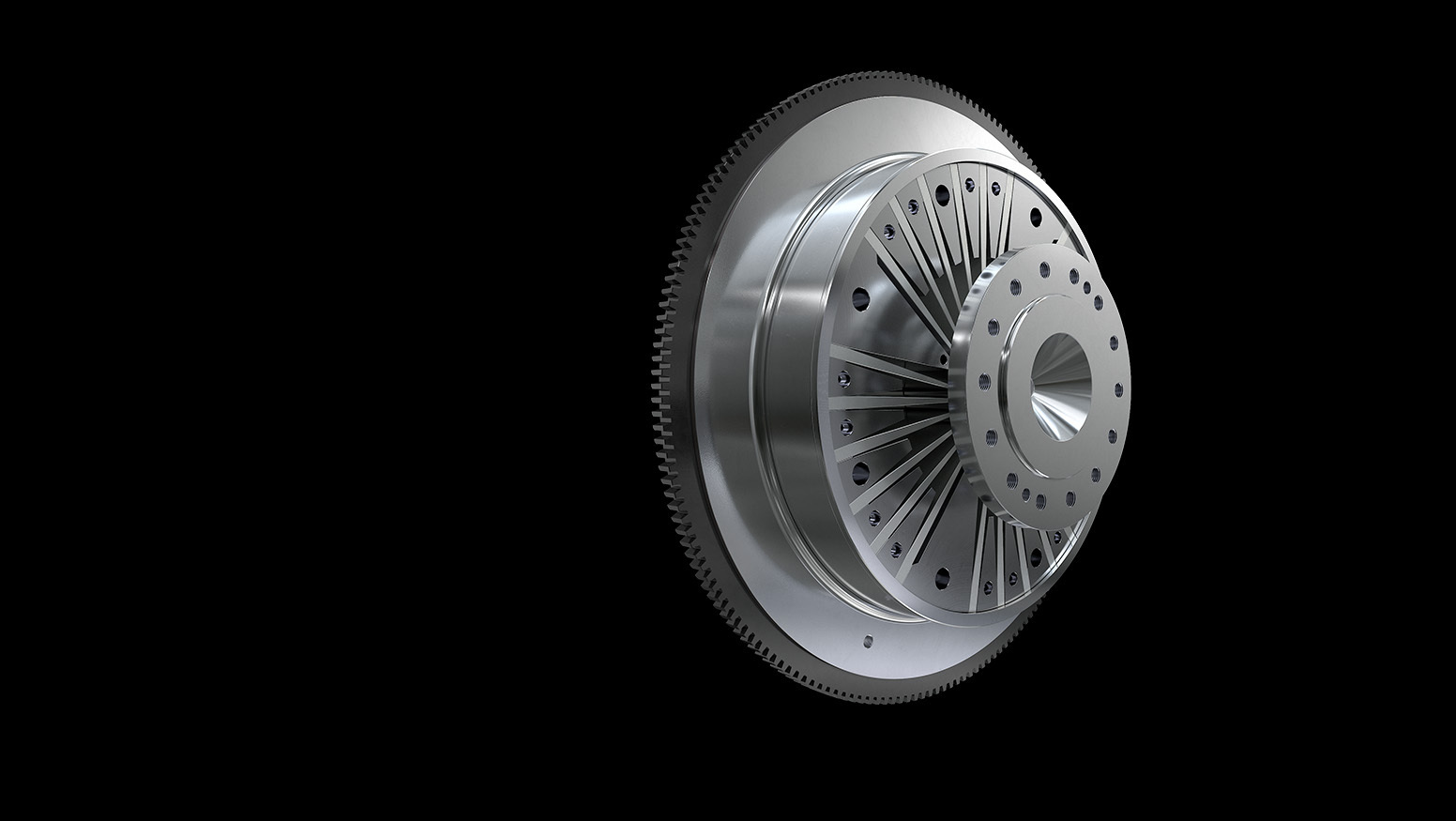

Geislinger Torsional Elastic Coupling
02/02

Rigidly mounted 4-stroke engine with mechanical and composite shaftline.
